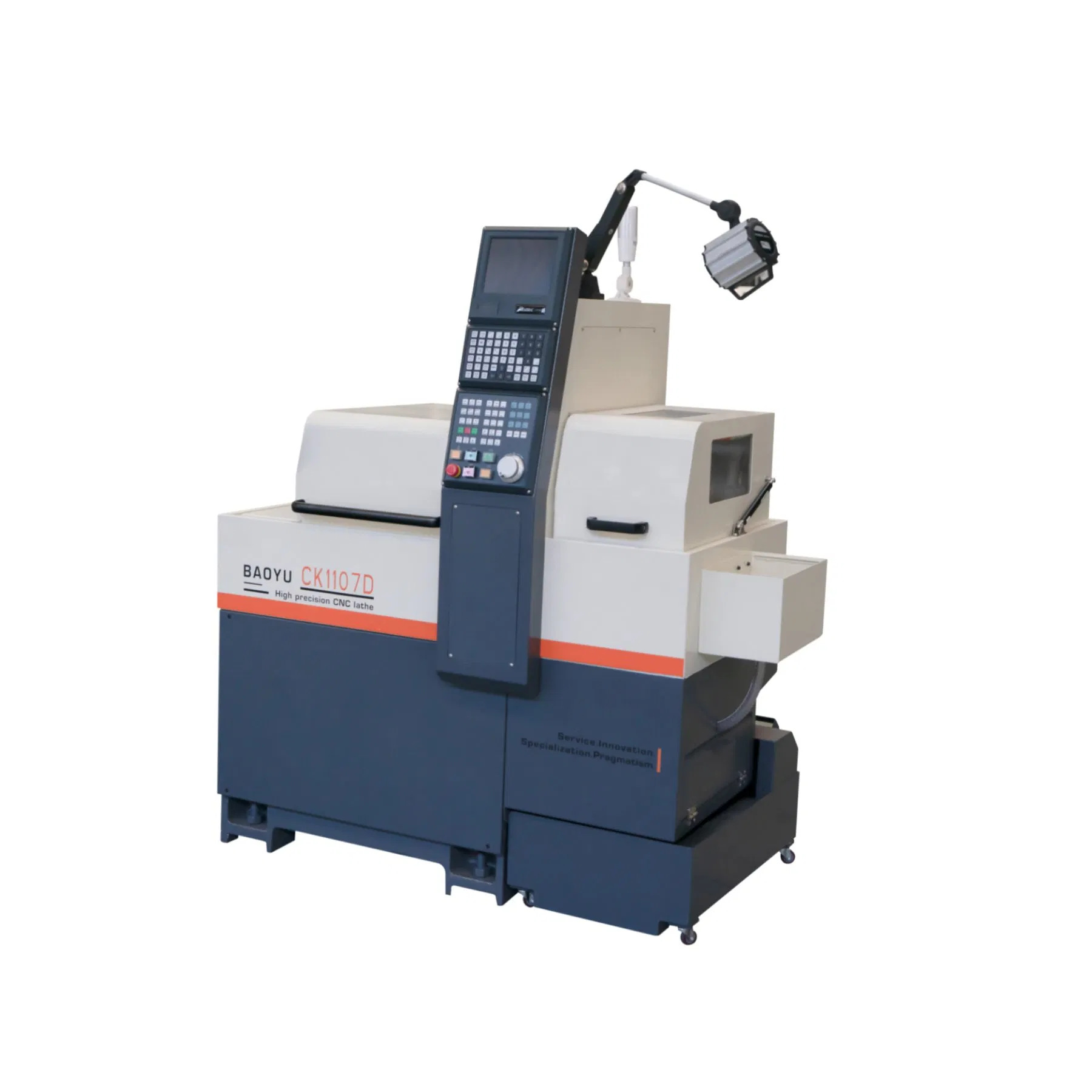

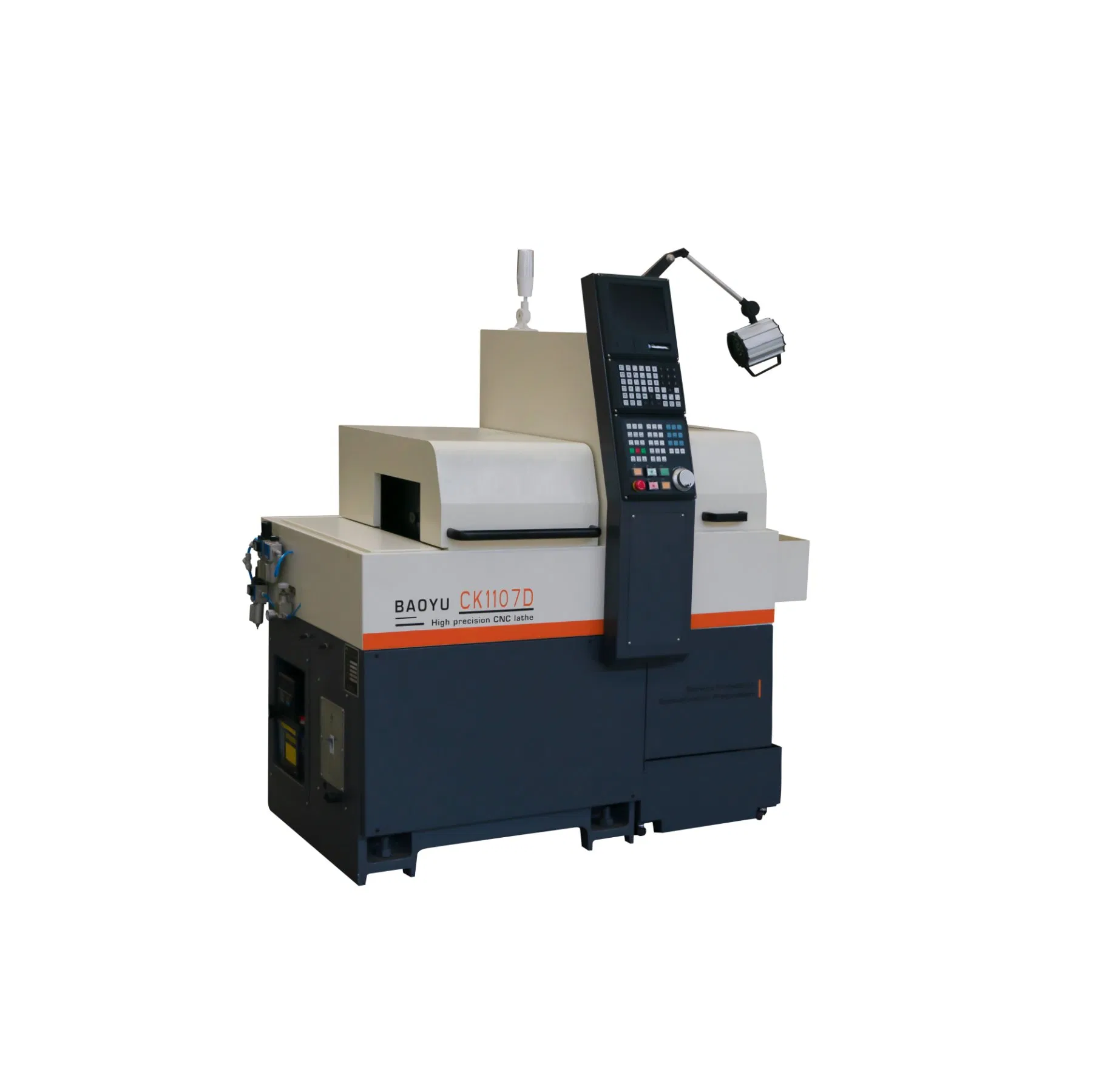

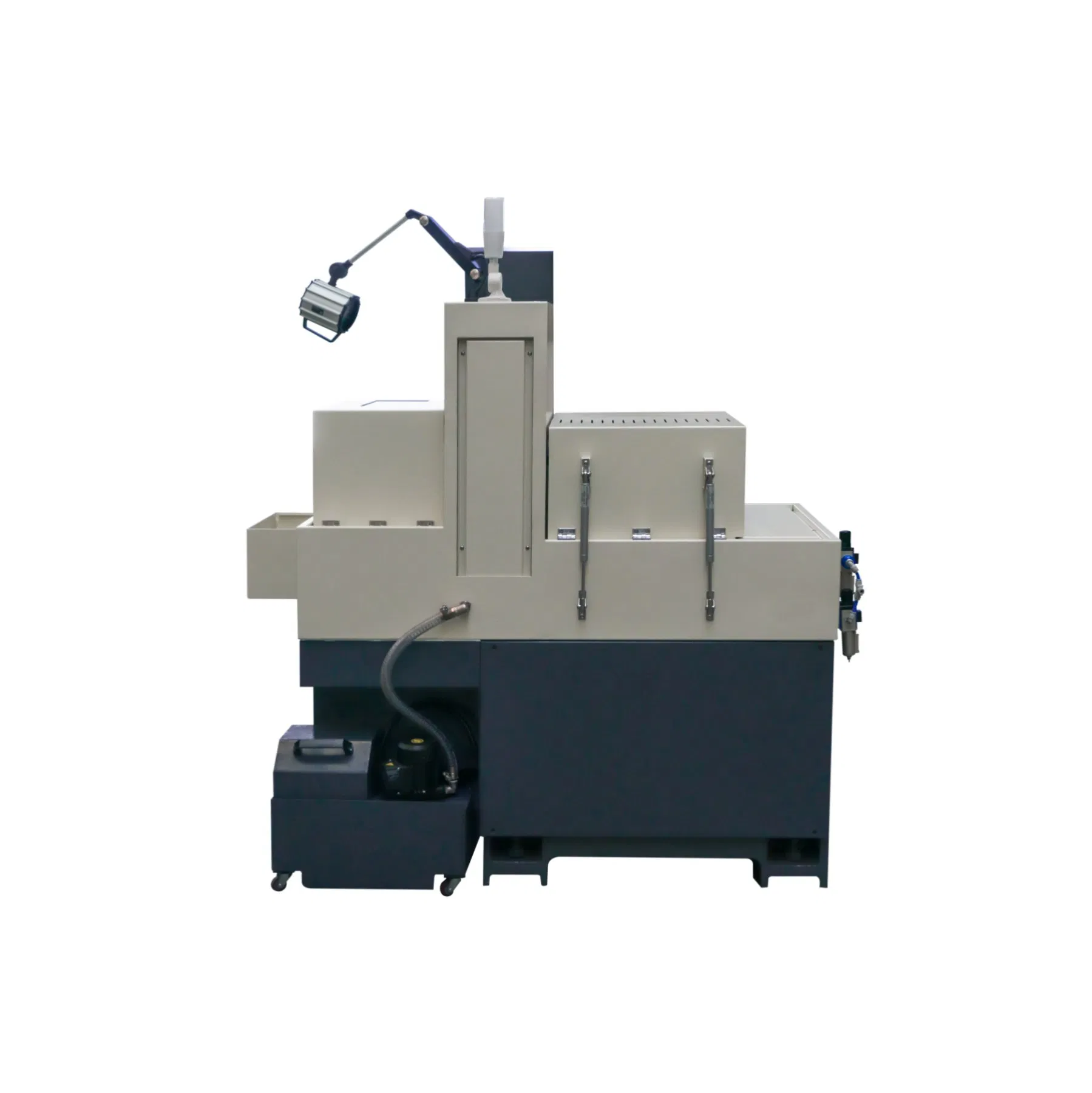

CK1107D Small CNC Machining Sliding Head Swiss Lathe with Power Head
USD 12200,00 – 12500,00
/ set
Preis variiert je nach Menge und Spezifikationen
| Mindestmenge | 1 set |
| Kategorie | Machinery |
15
Jahre
98%
Antwortrate
24h
Antwortzeit
Mehr von diesem Lieferanten
Produktbeschreibung
Keine detaillierte Beschreibung verfügbar. Bitte senden Sie eine Anfrage.
Technische Spezifikationen
| Model NO. | CK1107D |
| After-sales Service | Always Valid |
| Warranty | 1 Year |
| Type | Multi-Axis Automatic and Semi-Automatic Lathe |
| Processing Accessory | Chuck CNC Lathe |
| Guide Rail | Horizontal Guide Rail |
| Tool Holder | Single-tool Holder CNC Lathe |
| Power Source | Hydraulic Pressure |
| Controlling Mode | CNC |
| Automatic Grade | Automatic |
| Setting Mode | Floor-type |
| Precision | High Precision |
| Certification | CE, ISO 9001, ISO14001 |
| Condition | New |
| CNC System | Baoyu Bysk Yz150 |
| Max Bar Diameter | 7 mm |
| Model | 3 Axis CNC Swiss Lathe |
| Travel | X, Y, Z |
| Function | Metal Turning, Milling, Drill |
| Main Spindle Through-Hole Diameter | 8mm |
| Main Spindle Center Height From Ground | 890mm |
| Guide Rail Form | Linear Guide Rail |
| Tools Arrangement | 12PCS |
| Turning& Milling Tools | 8PCS |
| Front Drilling | Chuck 3PCS |
| Cooling System | Oil Cooling |
| Motor Type | Absolute Value Servo Motor |
| Screw Rod | Taiwan Joint Venture |
| Guideway | Hiwin/PMI |
| Transport Package | Standard Wooden Case |
| Specification | 1415*700*1680mm |
| Trademark | Baoyu BYSK |
| Origin | Anhui Province, China |
| HS Code | 8458110090 |
