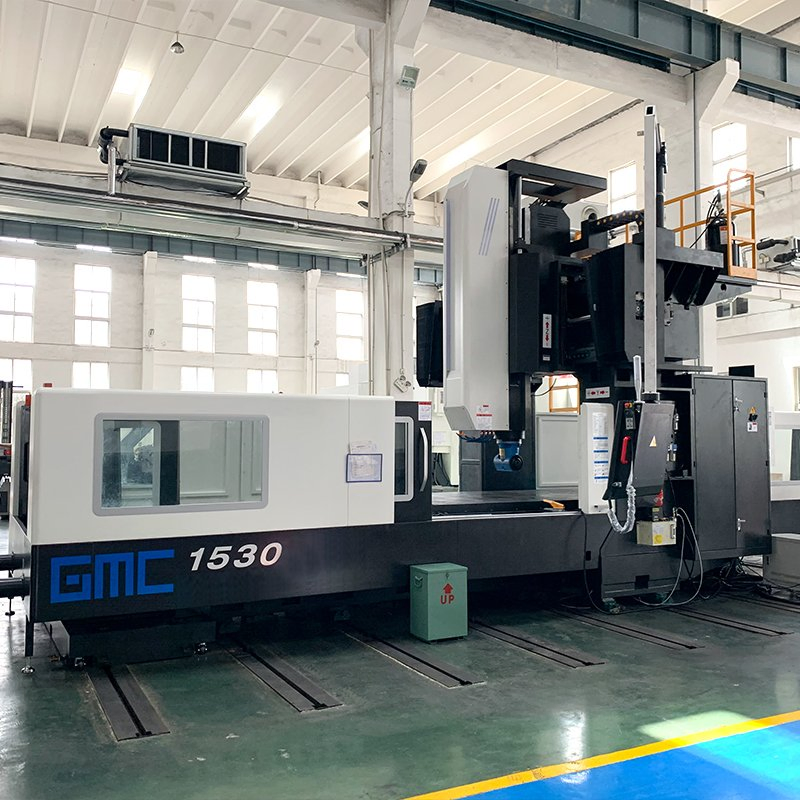

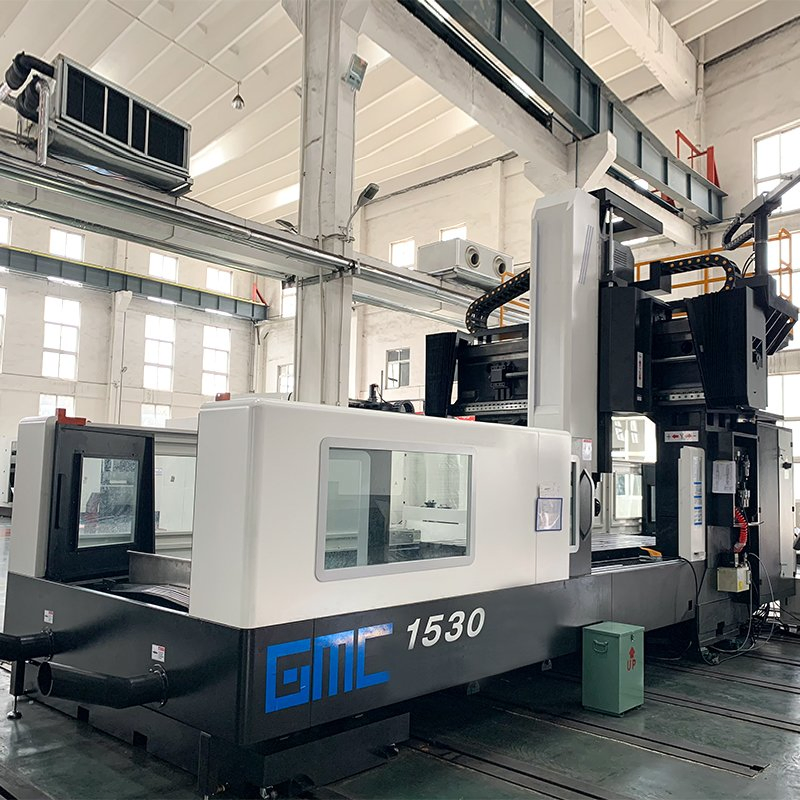

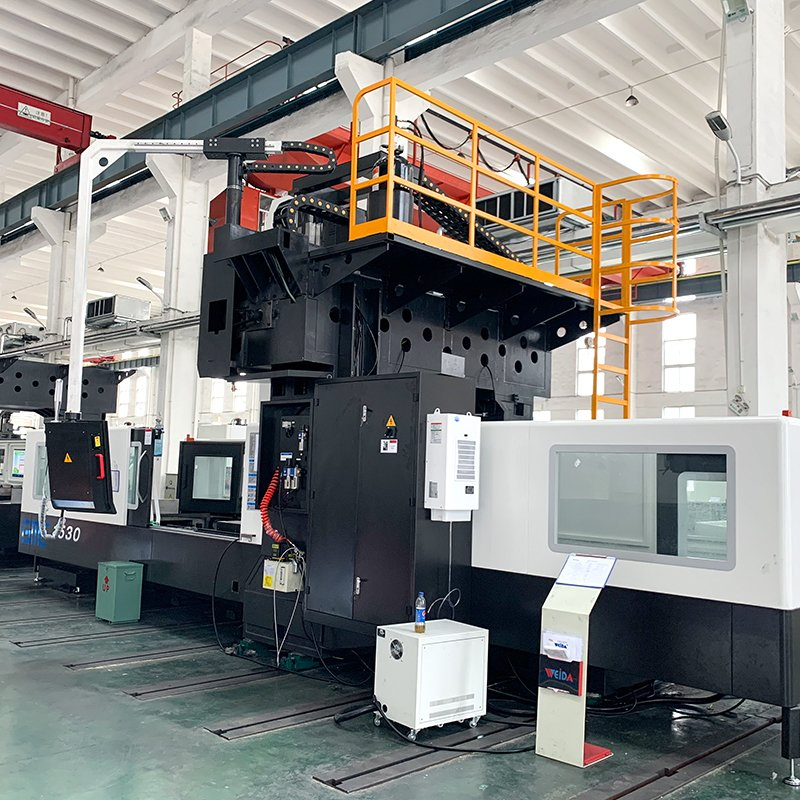

Gmc1530 BT50 Heavy-Duty CNC Gantry-Type Machining Center
USD 95000,00 – 105000,00
/ piece
Preis variiert je nach Menge und Spezifikationen
| Mindestmenge | 1 piece |
| Kategorie | Machinery |
2
Jahre
98%
Antwortrate
24h
Antwortzeit
Mehr von diesem Lieferanten
Produktbeschreibung
Keine detaillierte Beschreibung verfügbar. Bitte senden Sie eine Anfrage.
Technische Spezifikationen
| Model NO. | GMC1530 |
| After-sales Service | 1 Year |
| Warranty | 1 Year |
| Application | Metal |
| Process Usage | Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools |
| Movement Method | Linear Control |
| Control Method | Closed-Loop Control |
| Numerical Control | CNC/MNC |
| Processing Precision | 0.04~0.05(mm) |
| Performance Classification | Mid-Range CNC Machine Tools |
| Certification | CE, ISO 9001 |
| Condition | New |
| Model | Gmc1530 |
| Worktable Longitudinal Travel | 2200mm |
| Slide Carriage Transverse Travel | 1700mm |
| Milling Head Vertical Travel | 800mm |
| Worktable Size | 2000X1100mm |
| Max. Load of Worktable | 3500kg |
| Number/Width/Distance of T-Slot | 7/22/160mm |
| Gantry Width | 1600mm |
| Distance From Spindle End to Worktable S | 150-950mm |
| Spindle Taper | Bt50 |
| Spindle Speed | 10-3200rpm |
| Spindle Motor Power | 15/18.5kw |
| Feed Speed X/Y/Zaxis | 1-10000/1-10000/1-8000 mm/Min |
| Rapid Feed X/Y/Zaxis | 15000/20000/12000 mm/Min |
| Machine Weight | 18000kg |
| Transport Package | Wooden Box |
| Specification | 10000/4900/4300mm |
| Trademark | Vedon |
| Origin | Shandong China |
| HS Code | 8457103000 |
