CNC Press Brake Machine with 7mm/S Working Speed for Controlled Bending Accuracy
Thumbnail 1 Thumbnail 2 Thumbnail 3 Thumbnail 4 Thumbnail 5 Thumbnail 6
Manufacturer & Trading Company

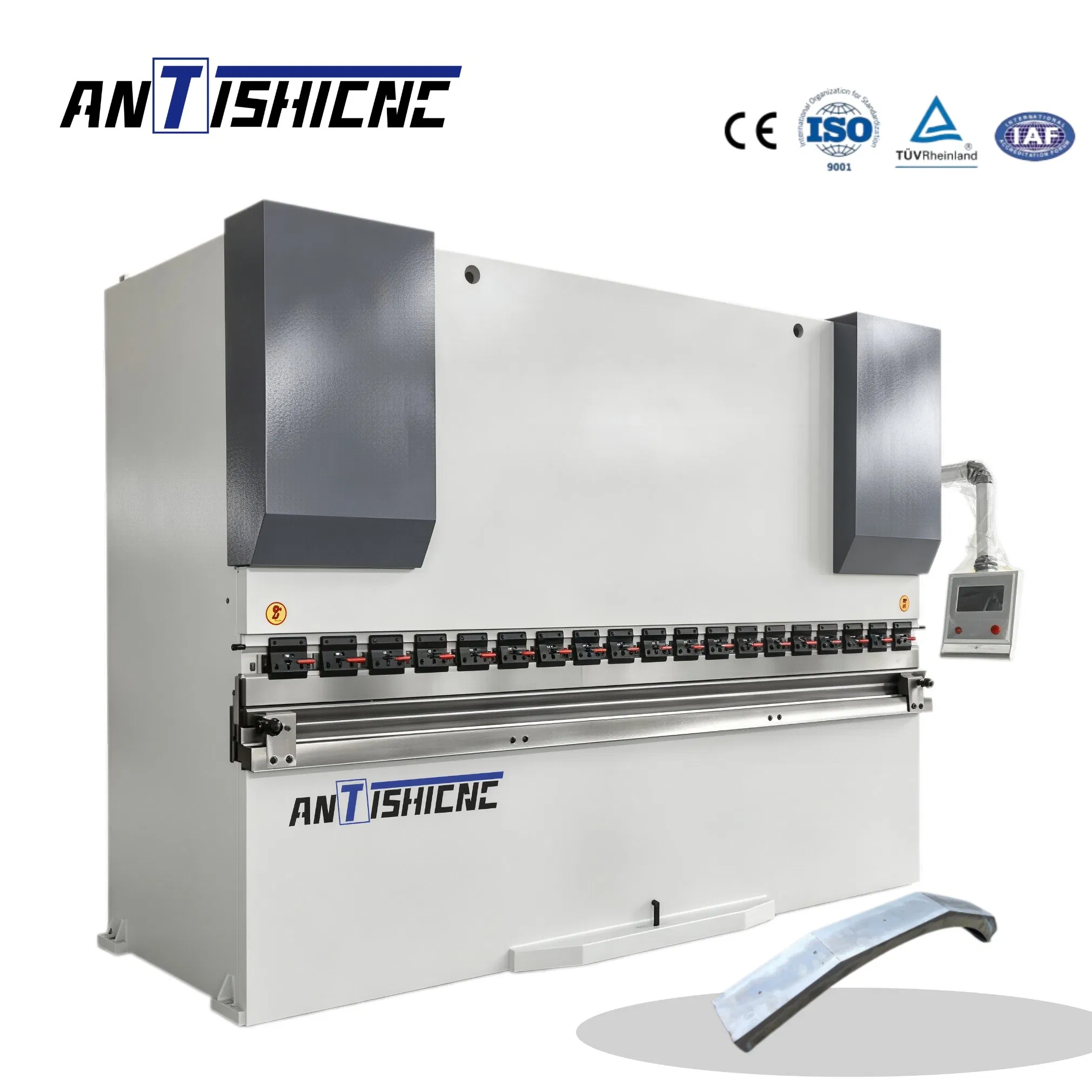

CNC Press Brake Machine with 7mm/S Working Speed for Controlled Bending Accuracy

USD 15800,00 – 85000,00 / piece
Preis variiert je nach Menge und Spezifikationen
Mindestmenge 1 piece
Kategorie General
Bestellung aufgeben
Shanghai Ants Machine Equipment Co., Ltd.

China

Manufacturer & Trading Company
26
Jahre
98%
Antwortrate
24h
Antwortzeit
Jetzt chatten
Mehr von diesem Lieferanten
Heavy Duty Sheet Metal Press Brake with 18.5kw Main Motor for Continuous Operation
Heavy Duty Sheet Metal Press Brake with 18.5kw Main Motor for Continuous Operation
USD 15800,00
Large Scale CNC Bending Press with 6000mm Table Length for Shipbuilding and Construction
Large Scale CNC Bending Press with 6000mm Table Length for Shipbuilding and Construction
USD 15250,00
Hydraulic Sheet Metal Brake with 60mm/S RAM No Load Speed for High Productivity Bending
Hydraulic Sheet Metal Brake with 60mm/S RAM No Load Speed for High Productivity Bending
USD 15800,00
High Torque CNC Bending Press with 300 Ton Force and 2600mm Column Distance
High Torque CNC Bending Press with 300 Ton Force and 2600mm Column Distance
USD 15800,00
Industrial CNC Hydraulic Press Brake with 800mm Backgauge Stroke for Large Workpiece Positioning
Industrial CNC Hydraulic Press Brake with 800mm Backgauge Stroke for Large Workpiece Positioning
USD 15800,00
CNC Hydraulic Press Brake with Torsion Bar Synchronization for Parallel RAM Movement
CNC Hydraulic Press Brake with Torsion Bar Synchronization for Parallel RAM Movement
USD 15800,00

Produktbeschreibung

Keine detaillierte Beschreibung verfügbar. Bitte senden Sie eine Anfrage.

CNC Press Brake Machine with 7mm/S Working Speed for Controlled Bending Accuracy
CNC Press Brake Machine with 7mm/S Working Speed for Controlled Bending Accuracy

Technische Spezifikationen

Model NO.WC67K-300T3200
After-sales ServiceSupport
Waterproof RatingIPX-8
Warranty1-year
ConditionNew
CertificationISO 9001:2000, ISO 9001:2008, CE
AutomationAutomatic
Suitable forCopper, Aluminum, Alloy, Carbon Steel, Stainless Steel
TypeHydraulic Bending Machine
NamePress Brake Machine
SpecificationsWc67K-300t3200
Nominal Force3000kN
Table Length3200mm
Distance Between Columns2600mm
Throat Depth400mm
Slider Stroke250mm
Max. Opening Height450mm
Main Motor Power18.5kw
Main Motor Speed1440rpm
Slider Stroke No-Load Speed60mm/S
Slider Stroke Working Speed7mm/S
Slider Stroke Return Speed50mm/S
Machine Size(L*W*H)3700*2000*3100mm
Transport PackageFactory Standard Packing
Specificationcustomization
TrademarkANTISHICNC
OriginChina
